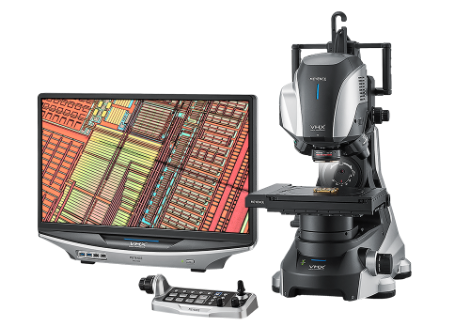

3D Inspection Microscope

3D Inspection Microscope
- High-resolution 3D images
- Capture areas completely in focus
- Ability to inspect from any angle
- Advanced 3D measurement capabilities
- View Catalog

High-Resolution 3D Images

The VHX 3D display function allows users to generate fully-focused 3D images of a target even at high magnifications. By combining glare removal functions and 3D compilation technologies, it is possible to construct a 3D profile even on targets with extremely reflective surfaces.
Capture Areas Completely in Focus

The depth from defocus method allows users to always have fully-focused images. By calculating the height position of the lens when each point in the image comes into focus, a 3D image can be created with height data and detailed texture information.

3D Measurement

The 3D image contains data in the XY and Z axes, providing for measurements such as volume, distance, plane angle, and profile. These are typically impossible with conventional optical microscopes.
Inspect from Any Angle

Compared to conventional microscopes, the VHX is extremely flexible. With the ability to inspect targets from any angle, users are able to view parts of a target that are normally impossible to see.
