Angle Measurement

Angle Measurement
- 300 dimensions for 100 parts in seconds
- No operator subjectivity
- Place and press inspection
- Automatically record data and generate inspection reports
- View Catalog

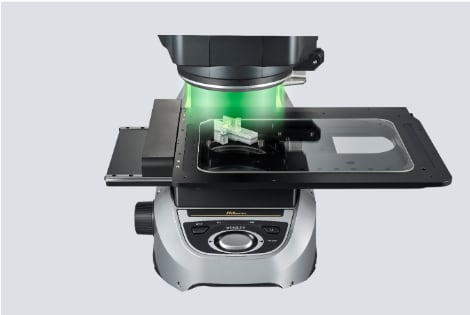

Measure Within Seconds

The IM Series digital measuring microscope is characterized by the speed and simplicity to perform measurements. Simply place the sample on the stage and press the button to detect up to 300 dimensions in seconds.

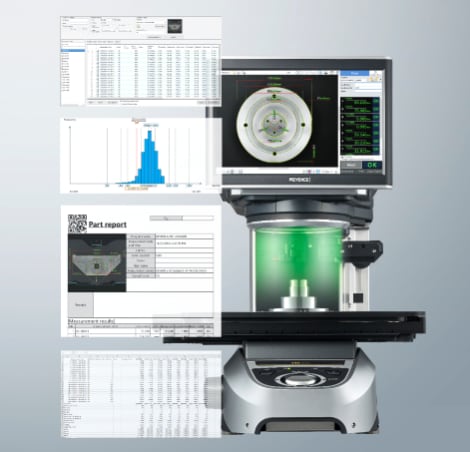

Automatic Inspection Reports

The IM Series allows the measurement data to be automatically saved and managed as soon as a part is measured including statistical analysis, trend, histogram, and Cp/Cpk which can be easily exported to a PC.

Spring
Screw and Bolt
Lathe Processed
Transparent Part

Why KEYENCE IM Series?

The IM Series boasts a small foot print allowing it to be accessible to all operators. With its easy-to-use software anyone can achieve accurate, repeatable measurements anywhere in your facility. Whether it be on the shop floor or within a QA lab, the Instant Measurement System can be used regardless of the operator's experience with inspection equipment.
