• Geometric & Dimension Tolerancing

    • Instantly measure all 2D and GD&T profile using features
    • Automatically record data and generate inspection reports
    • Zero operator subjectivity
    • Fast, accurate and easy to use
    • Full GD&T applications included
  • Measure Within Seconds

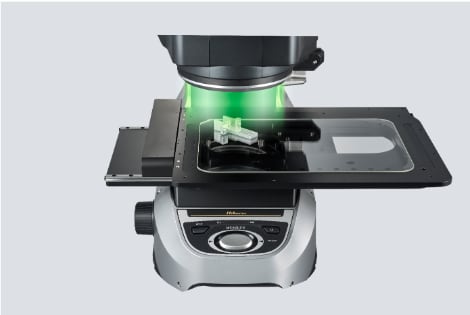

    The IM Series is characterized by the speed and simplicity to perform measurements. Simply place the sample on the stage and press the button to detect up to 300 dimensions in seconds.

  • New Standard for GD&T Measurement

    Can you imagine how to measure GD&T within seconds? The IM Series covers advanced functionalities of GD&T calculations including straightness, roundness, profile, perpendicularity, parallelism, position and concentricity.

  • Spring

  • Screw and Bolt

  • Lathe Processed

  • Transparent Part

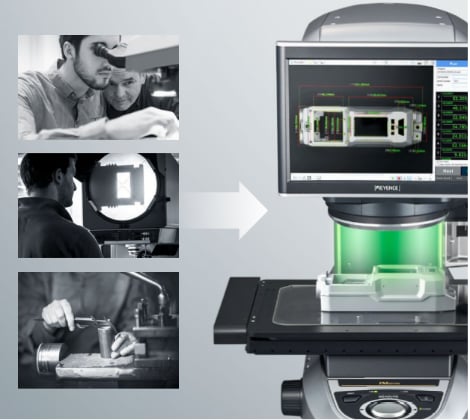

  • Why KEYENCE IM Series?

    The IM Series boasts a small foot print allowing it to be accessible to all operators. With its easy-to-use software anyone can achieve accurate, repeatable measurements anywhere in your facility. Whether it be on the shop floor or within a QA lab, the Instant Measurement System can be used regardless of the operator's experience with inspection equipment.
