Optical Measurement System

Optical Measurement System
- 300 dimensions on up to 100 parts in seconds with OK/NG judgement
- No operator subjectivity
- Place and press inspection
- Automatically record data and generate inspection reports
- View Catalog

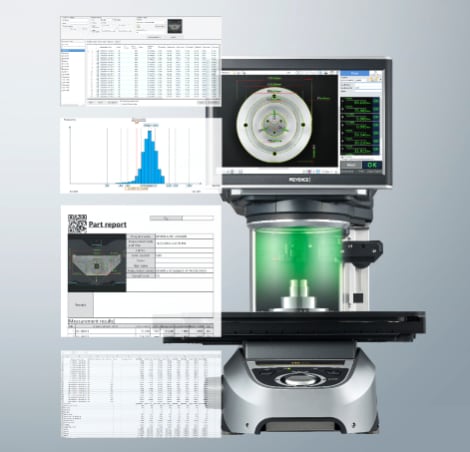

What is the KEYENCE IM Series?

The next generation of optical comparators, calipers/micrometers, measuring microscopes, and optical CMMs. Width, radius, and height measurements all with one device.
Measurements Performed in Seconds

With conventional methods, measurement time increases in relation to the amount of dimensions taken. With the IM Series, up to 300 dimensions can be measured in seconds.

Intuitive Interface That Anyone Can Use

The easy-to-use interface allows anyone to operate the system at the push of a button, allowing for accurate and repeatable measurement results.
Results Are Automatically Recorded

Measurement data is automatically saved and managed as soon as a part is measured. Inspection reports can also be created with the push of a button.

Spring
Screw and Bolt
Lathe Processed
Transparent Part
