• Measuring System

    Instant Measurement System
    • 300 dimensions on up to 100 parts in seconds
    • No operator subjectivity
    • Place and press inspection
    • Automatically record data and generate inspection reports

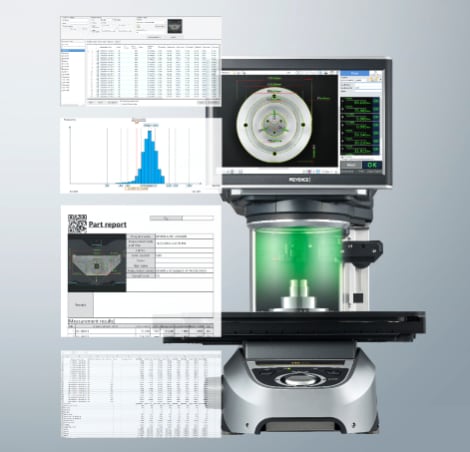

  • What is the KEYENCE IM Series?

    The Instant Measurement System projects a parts profile and automatically performs measurements in place of conventional or digital comparators, calipers/micrometers, measuring microscopes, and optical CMMs.

  • Place and Press Inspection

    Place up to 100 parts on the stage and measure up to 300 dimensional features on each part at the push of a button for instant part inspection.

  • Eliminate Operator Error

    Utilizing the IM Series' advanced optics and high-speed image processing technology, measurements are now consistent regardless of who's operating the system.

  • Automatic Data Recording and Inspection Reports

    Complete inspection and analysis reports can be automatically saved on the system without having to manually record the data by hand.

  • Spring

  • Lathe Processing

  • Threads

  • Plastic with Toplight

For more information view the brochure.
