Profile Projector - The Next Generation

Incorporating all the great functions from numerous conventional equipment such as

- Optical Comparator - Profile Projector - CMM - Measuring Scope - Caliper - GD&T -

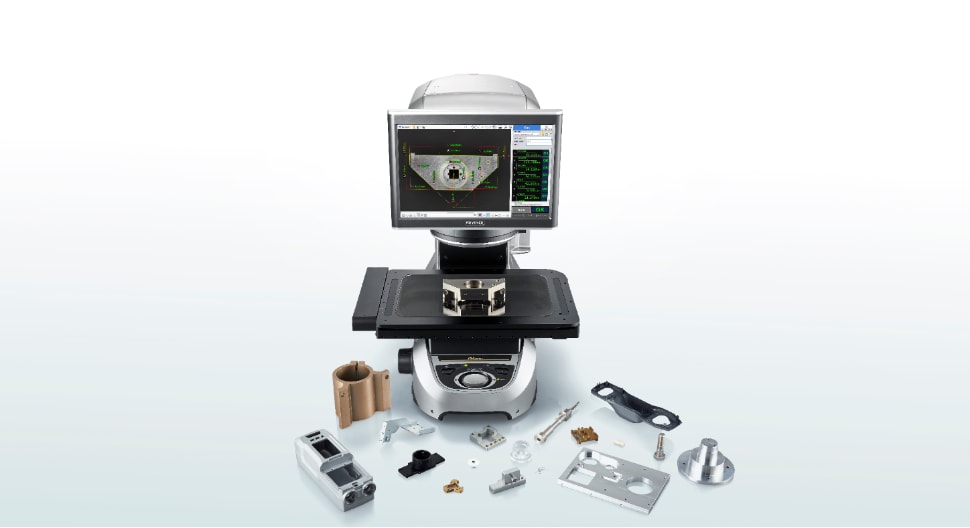

The IM Series Image Dimension Measurement System is a completely new optical inspection system that performs dimensional measurement with a simple “Place and Press” operation.

Find out what you can get from the New Version General Catalogue of the IM Series

  • Very Quick Measurement!

  • 3 BIG problems in the industries:
    • Slow measurement up to minutes
    • Inconsistent results
    • Complicated processes and data collection

    Solutions from the IM Series:
    • Measure 300 dimensions on a part in seconds
    • 3 build-in automated functions eliminate operator error

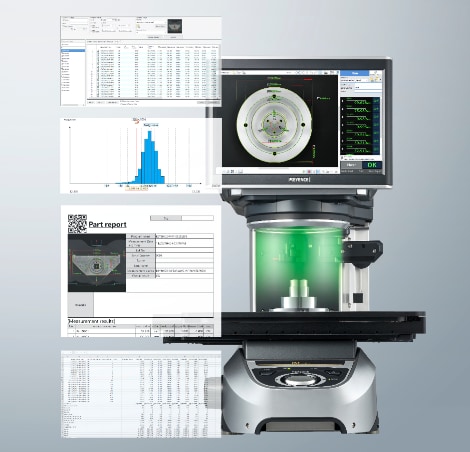

    • Intuitive interface allows easy set up and data storage
